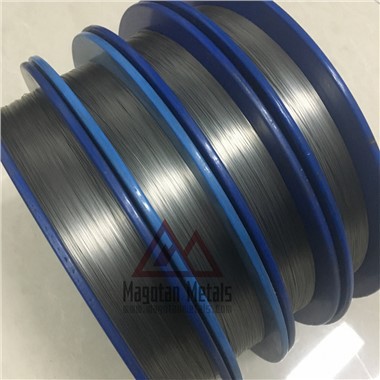

Spot Welding Tungsten Wire

Spot Welding Tungsten Wire is made of materials with high melting point, corrosion resistance, high density, good thermal and electrical conductivity. Spot Welding Tungsten Wire is widely used for welding in its properties. Tungsten electrode is ground or polished with black rod. The final color is different, you can tell the difference. In tungsten electrodes, more importantly, the tungsten content varies depending on their final color. When welding, choose the right tungsten electrode to make welding easier, it is important to obtain high quality welding. Some important factors to consider in making the right choice are the power supply (inverter or transformer), welding material (steel, aluminum or stainless steel) and type of material thickness.

Tungsten electrode is used for TIG welding, which is a tungsten alloy strip made by mixing 0.3%-5% rare earth elements such as cerium, thorium, lanthanum, zirconium and yttrium into tungsten matrix by powder metallurgy, and then processed by pressure. The diameter is from 0.25 to 6.4mm, and the standard length is from 75 to 600. The most commonly used specifications are diameters of 1.0, 1.6, 2.4, and 3.2. The shape of the electrode end is an important factor for TIG. When DCSP is used, the electrode end needs to be sharped, and the tip Angle varies with the application range, electrode diameter, and welding current. Low current, needle-like minimum electrode is needed to stabilize the arc, and appropriate ground electrode can ensure easy arc initiation, good arc stability and appropriate pass width. When welding with AC power supply, there is no need to grind the electric extreme, because the use of appropriate welding current, the electric extreme will form half spherical, if the welding current is increased, the electric extreme will become bulb shape and may melt and pollute the molten gold.

Thorio-tungsten electrodes are easy to operate and work well even under overload currents, and are still used by many people as part of high-quality welding. However, people are increasingly looking at other types of tungsten electrodes, such as cerium and lanthanum. The thorium oxide in the tungsten-thorium electrode produces a small amount of radiation, which makes some welders reluctant to approach them.
